Product Introduction

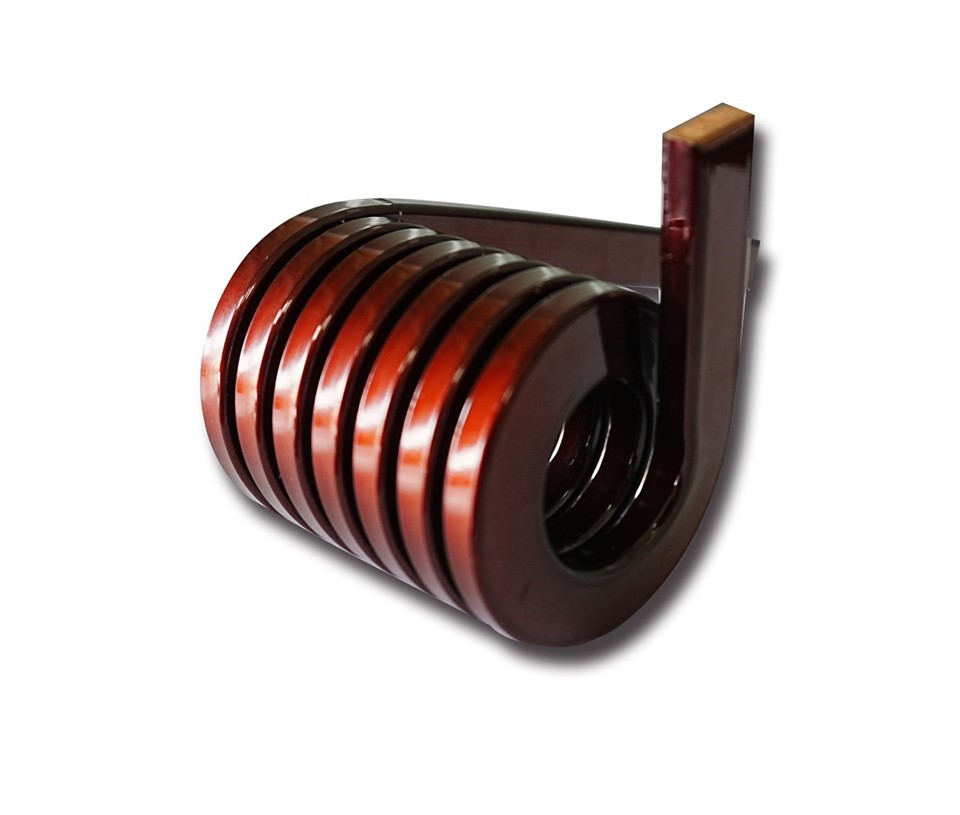

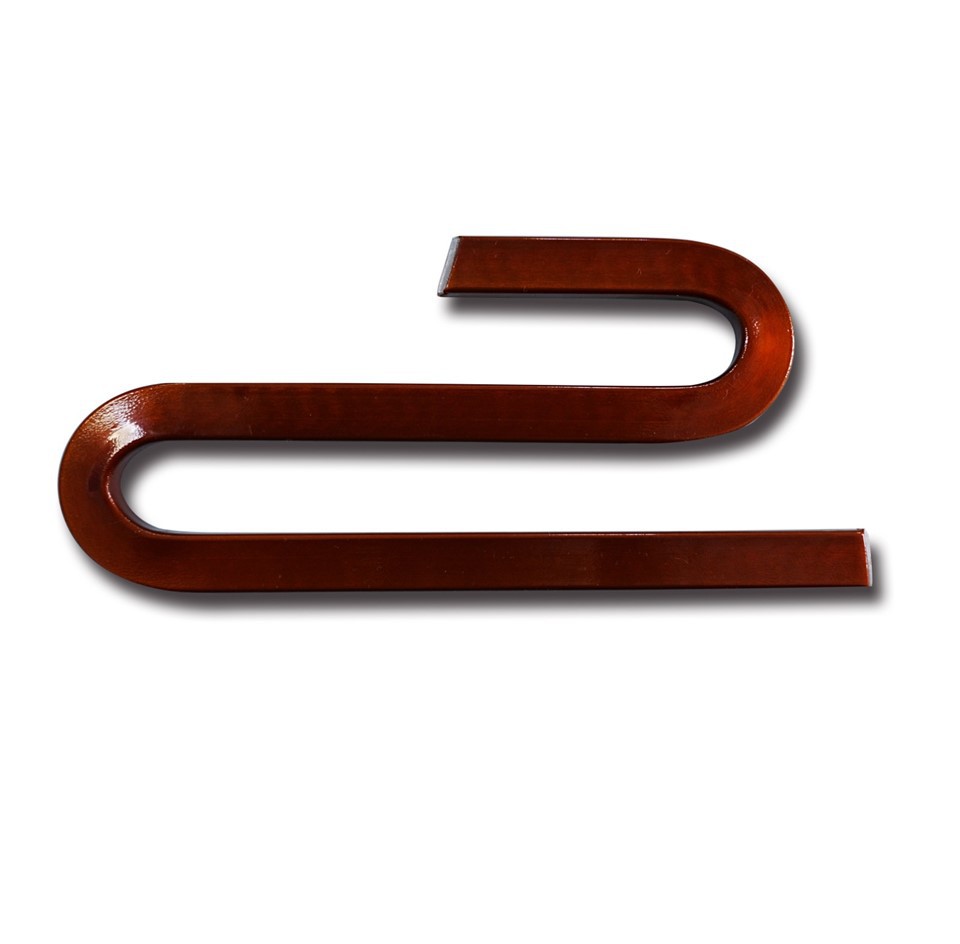

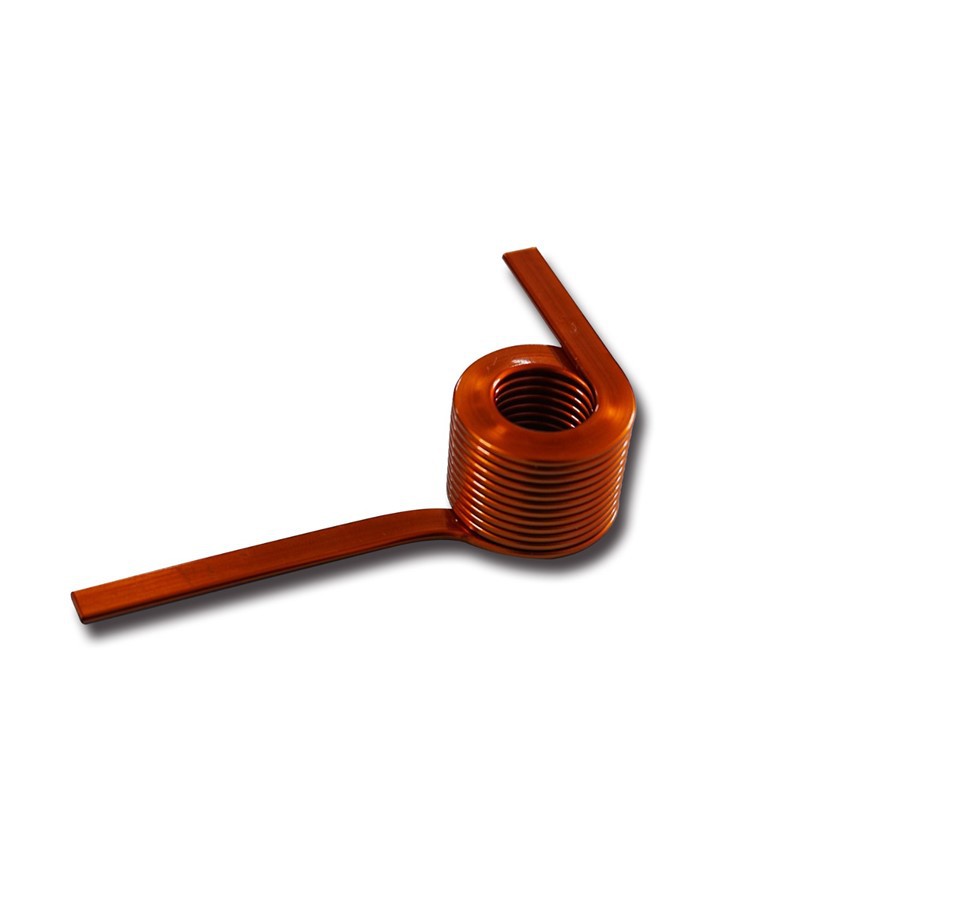

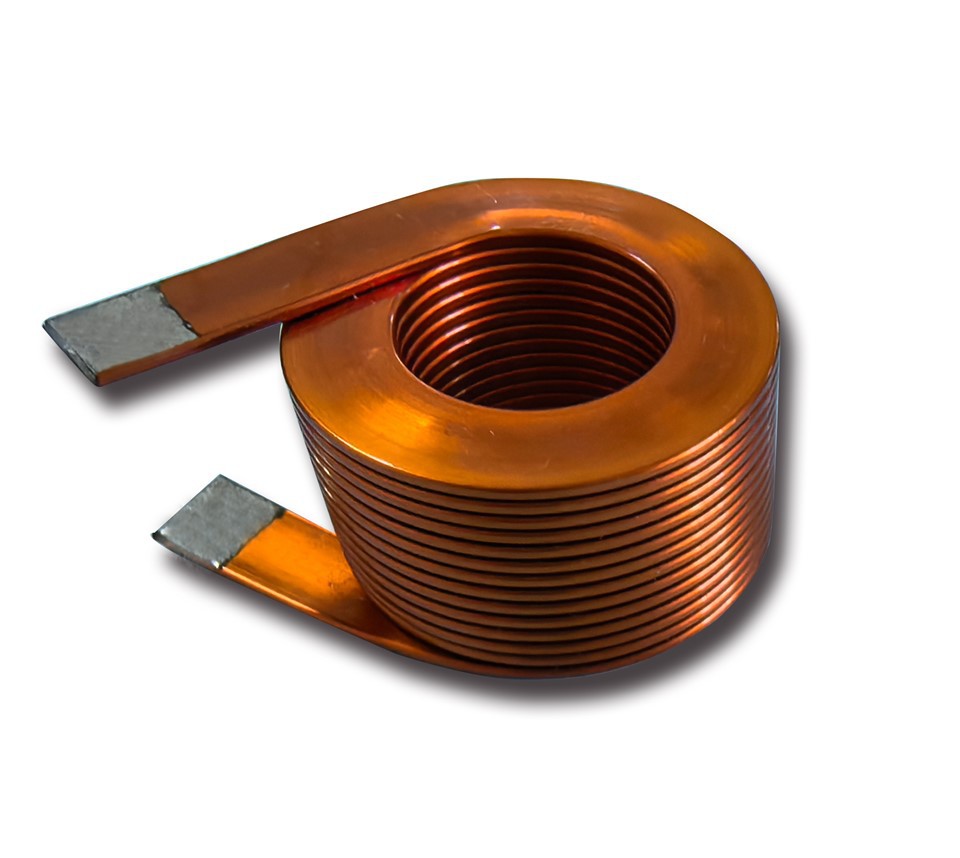

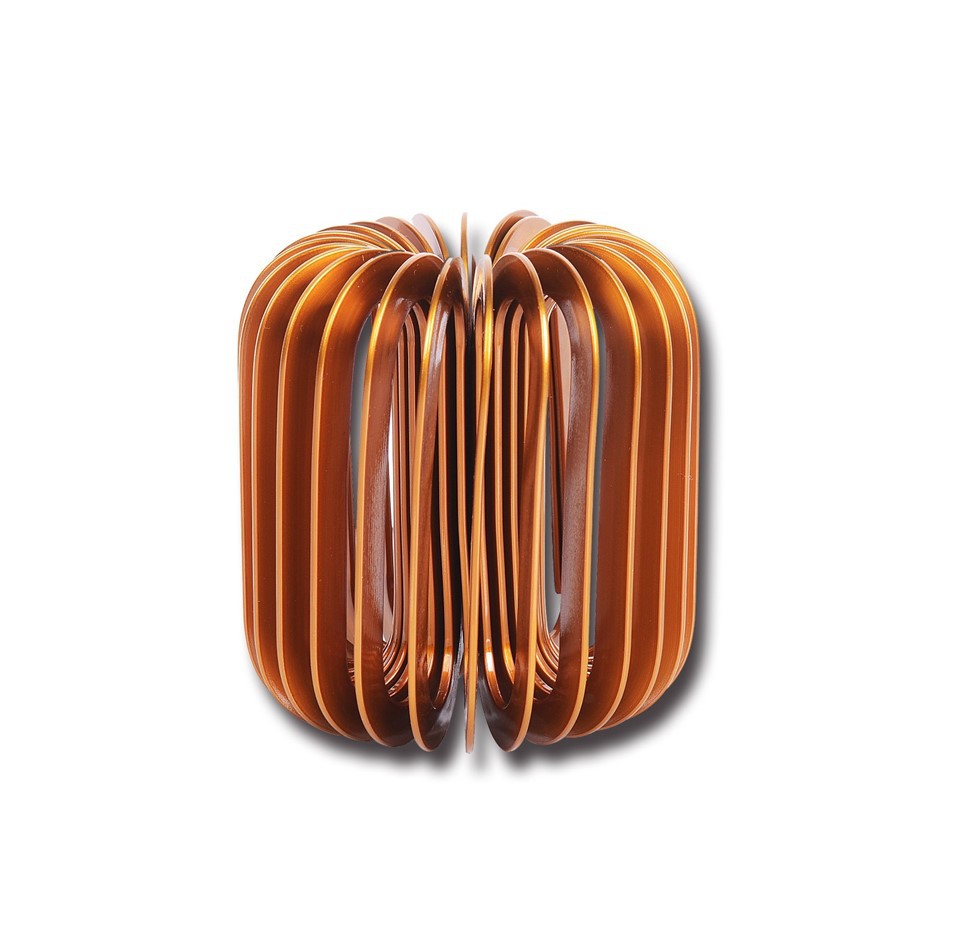

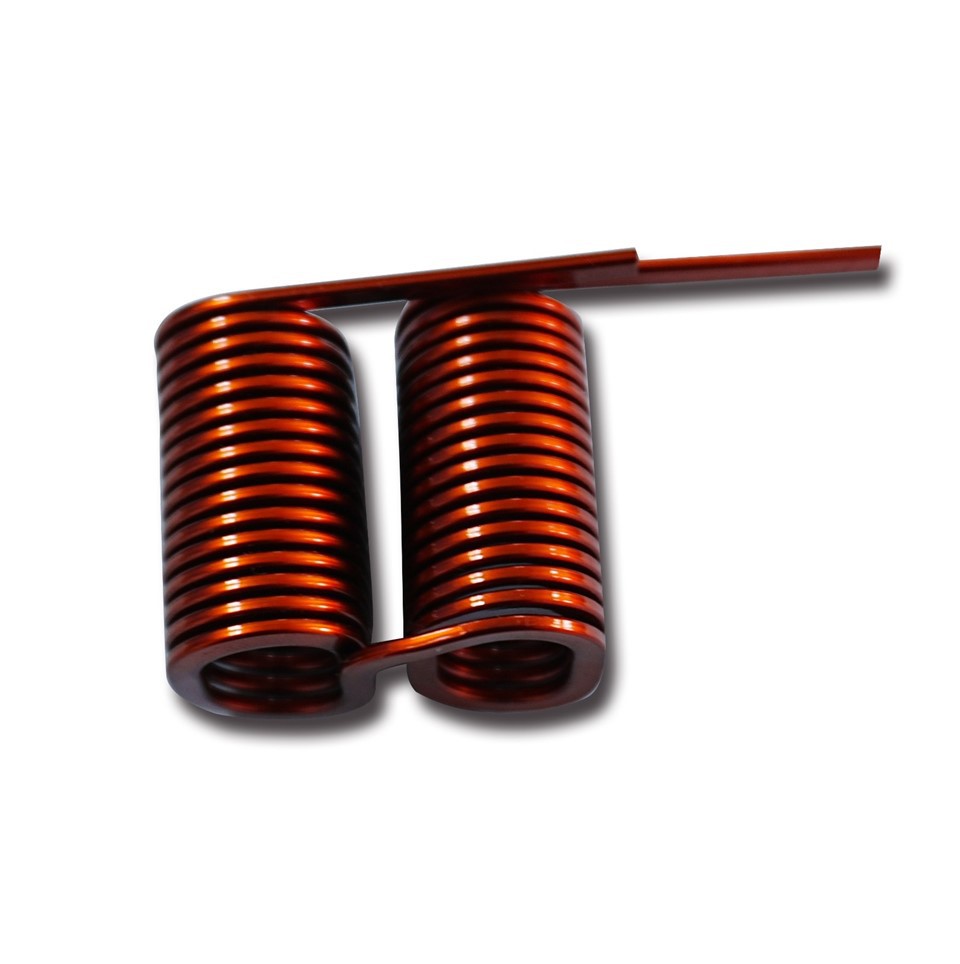

Flat wire coil is a flat copper or aluminum coil suitable for electromagnetic windings in transformers, motors, inductors, and other applications, improving space utilization and heat dissipation.
Assembly Method
High-purity electrolytic copper (≥99.9%) or aluminum.
Bonding
Flat wire coils are secured by stacking layers, with key locations reinforced by welding or high-temperature-resistant insulating adhesive.
Shape

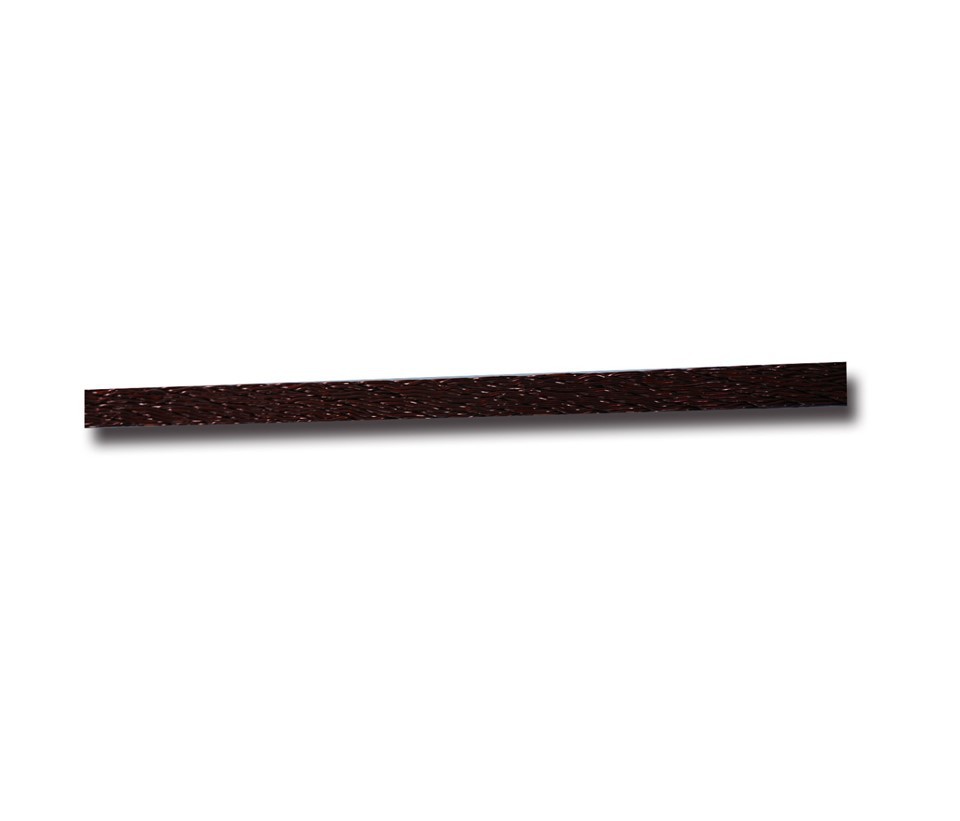

Rectangular flat wire, customizable thickness (0.1–2 mm), width adjustable to coil specifications.
Insulation Materials
Enameled polyester (PET), polyamide (PI), polyesterimide composite film.
Product Features
High Conductivity
Flat wire coils are made from high-purity copper or aluminum with a conductivity of ≥97%, effectively reducing resistance and improving motor and transformer efficiency.
Precision Machining
Flat wire coils utilize CNC automated winding with a tolerance of ±0.05mm, ensuring uniform coils.
Flexible Customization
We support customizing wire material, thickness, insulation material, and coil diameter based on drawings or samples to meet diverse equipment requirements.


Online Monitoring System
Flat wire coils are equipped with an online monitoring system including temperature sensors, current sensors, and surface defect detection cameras, enabling real-time quality monitoring of the winding process.
Packing Reference
Jingwei Power offers packaging solutions that best suit your needs. If your goal is to minimize product exchanges or inventory, here are some common packaging solutions for domestic and international shipping:




Cylindrical Wooden Spool Cylindrical Plastic Spool Tapering Plastic Spool
Wooden Pallet (IPPC) General Wooden Pallet (Domestic packing)
Wooden Case (IPPC) Euro Pallet (Domestic packing)
Transportation
We support sea, air, container and large truck transportation and have global transportation experience.
